This image was created on 4 December 2020 at Indian Lake Estates, FL. I used the handheld Canon RF 100-500mm f/4.5-7.1L IS USM lens (at 500mm) and the highly touted 45MP Canon EOS R5 Mirrorless Digital camera body. ISO ???. Exposure determined using the in-camera histogram: 1/1000 sec. at f/7.1 (wide open!) in Manual mode. AWB at 7:53am on cloudy very dark morning.

Face detection + Tracking/AI Servo AF was active at the moment of exposure and performed well.

Click the image to see a larger version.

Image #2: Black Vulture in B&W

Revisiting …

The A Two-part Exercise in Thinking blog post here, included this:

An Exercise in Thinking Part II

Please feel free to share your thoughts on this image. Can you guess the ISO? How would you rate the sharpness of this image? How did I get so close to this bird? Can you detect any Photoshop trickery in Image #2? Any and all comments are welcome.

The Answers

1-The ISO was 6400.

2- To my eye, the image sharpness is superb. I ran DeNoise AI on this image but not Sharpen AI.

3- I was in my SUV. Kudos to old friend Cliff Beittel who pointed out the reflection of my vehicle in the vulture’s eye.

Note: the optimized image file was converted to black and white using the Dynamic Smooth preset in NIK’s Silver EFEX Pro. Kee reading to learn why I had to create a black and white version of this image.

I Generally Do Not Study-Use-Understand the Scientific-Theoretical Mumbo-Jumbo and Charts

I rarely if ever study/use/understand the scientific/theoretical charts and theories relating to photography. Folks often send links to such material. For one, I have never looked at an MTF chart. May great preference is to head into the field with a given camera or lens, create images of birds, and evaluate the results.

But …

In the comments section of the Operator Error, a Great AF System — but …, a large Crop, and not too bad an image. And a variable aperture zoom lens tip! post here, blog regular Adam Rubenstein wrote in part:

Perfect exposure is even more important with the R5 than the Sony as it is less forgiving with shadow recovery for under exposure compared to the a9(ii). See the chart here.

I pushed back a bit when I replied:

Thanks for the links. I am not comfortable with the scientific side of photography, but I think that I understand it. Don’t forget (see lots of threads on BPN) that I am the guy that believes black shadows should be black 🙂

But, because Adam is quite knowledgeable and an all-around good guy, I clicked on the link, studied it for a bit, and came away with an important understanding … The chart that Adam linked me to compares the R5 to the SONY a9 ii.

Click on the image to see a larger version.

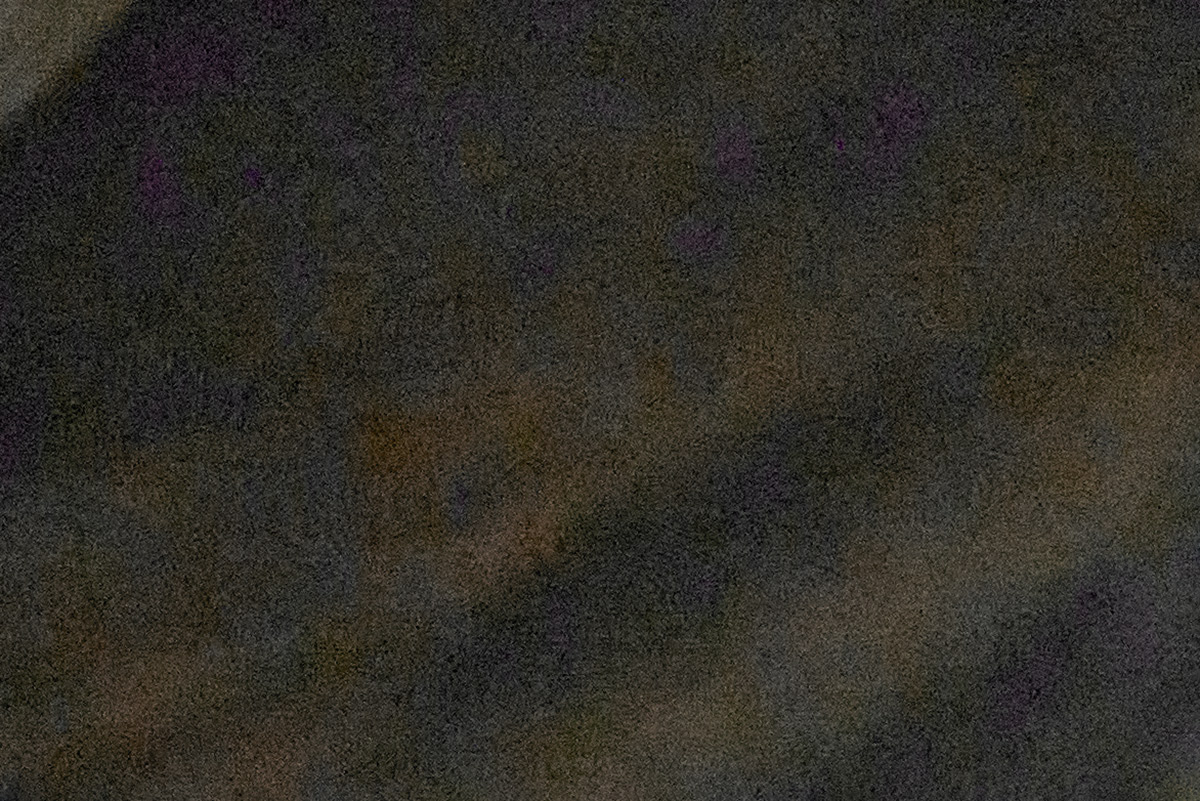

Image #2A: color noise in the converted Black Vulture image

The Color Noise

RawDigger showed that the raw file for today’s Black Vulture image was only 1/3 to 1/2 stop under-exposed. After converting the file in Capture One, I was stunned to see the horrific color noise on the bird’s shadowed breast. In Topaz DeNoise AI. I moved the Color Noise Reduction slider to 100. It did not help. Why such horrible color noise?

In part, the noise was a result of the black bird’s breast was in “shadow” even on what was a cloudy-dark day. But there had to be more to it than that …

Click on the image to see better read the fine print.

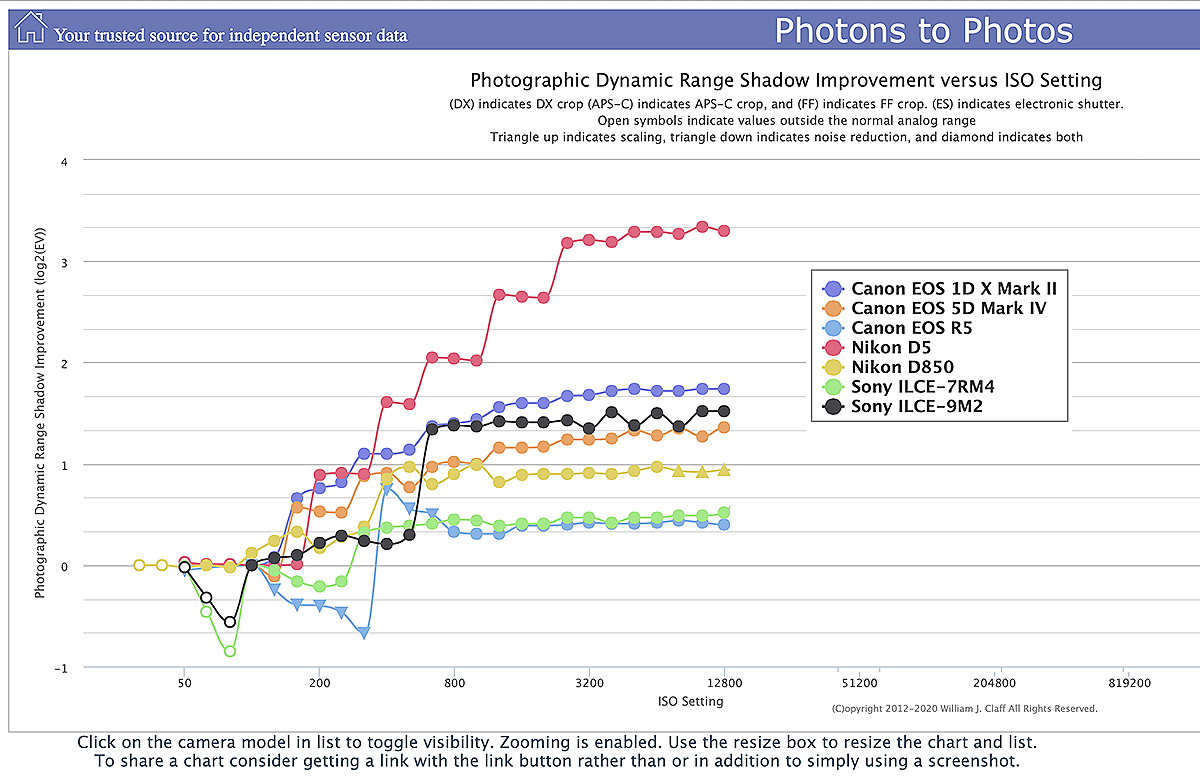

Adapted from the Photons to Photos website here

Photographic Dynamic Range Shadow Improvement versus ISO Setting

By going here, you can create your own chart by picking your camera body from the very extensive list on the right. I did that for most of the cameras I have used over the past seven or so years. The higher the point on the graph for a given camera body at a given ISO, the better that camera will handle shadow detail. I adapted the chart above by restricting it to the normally useable ISOs.

In the 800-6400 ISO range, the Nikon D5 (and the D6 — not shown), show the best performance by far in this area. The Canon EOS R5 (and R6 — not shown) ranks last. I was surprised that the SONY a7r IV was not very much better than the R5 as I have not had similar color noise problems with 7r iv images.

Click here to see the complete chart.

An R5 Negative

In any case, after studying the charts, I realized that the R5 simply does not handle under-exposed dark tones very well at all. Amazingly, it is at its absolute worst at ISO 318!

It is possible that because SONY offers live-in-the-viewfinder Zebras that enable me to mega-expose to the right every time, I have not encountered any similar problems with a7r IV images. I will readily admit that I have not used ISO 6400 with that body very much if at all.

In doing my R5 testing, I have pushed the camera to places I usually do not visit. Now don’t get me wrong, the R5 is a superb body that offers a great AF system; at this point I firmly believe that folks who have stuck with Canon through the lean years (in terms of AF performance) should be using the R5. They should, however, do their best not to underexpose. Ever. But especially with images of dark birds made in low light at high ISOs 🙂

Thanks, Adam!

Thanks, Adam for pointing me to the Photons to Photos website

. When visiting the home page, I saw more than a few charts that I might want to check out 🙁

🙂

with love, artie

Typos

Feel free to e-mail or to leave a comment regarding any typos or errors. Just be right :). with love, artie

17 comments to Re-visiting An Exercise in Thinking Part II. An R5 Negative: Color Noise. I Generally Do Not Study-Use-Understand the Scientific-Theoretical Mumbo-Jumbo and Charts. But …

  • Thanks so much Artie for a great comprehensive analysis and data review of the R5 ISO and Dynamic Range Shadow Improvement…

    When I got the two R5 bodies, I did notice the color noise past ISO 3200 (ISO 6400 was the highest I used with these bodies), and some of the images could not be corrected/adjusted properly in Topaz DeNoise. My Canon 1Dx MKII did much better than the R5’s in that regard, which pretty much corroborates the data in the Photos to Photons graph.

    As a Canon shooter who stuck to the brand thru the “lean years”, I can only wish for Canon to incorporate (perhaps via firmware) in the near future the Zebras for “photo (still) mode” (I understand that it is available for “movie mode”) as a way to accurately adjust the exposure without having to waste an exposure shot every time before a photo session. Having the live histogram on the EVF partially blocks the view, and IMHO this is critical when trying to track and shoot BIFs… Again, this is just my opinion.

    Take care and keep safe!

    With love,

    Luis G.

    • Arthur Morris/BIRDS AS ART

      Luis,

      YAW. Thanks for sharing your thoughts. If you have time, “wasting a shot or two” to get the right exposure is not a big deal; the big problem occurs when something in a new situation occurs suddenly right in front of you. With practice, with SONY, you can adjust the ISO almost instantly, on the fly if you would.

      And yes, the histogram in the viewfinder is a really pain for me, no so much for flight but because it blocks your view of the whole frame and makes it more difficult to fine-tune your image designs.

      with love, a

  • Stuart Edwards

    Hi Artie. Would the color noise be any different if it had been converted with DPP ?

  • Doug

    Prior to zebras, a famous bird photographer wrote that exposure with digital cameras is a piece of cake. For Canon users, he said, “Expose to the right with data in the 5th box and you will be fine.” His instruction has worked for me!
    The live histogram in the R5’s EV makes exposure easier. Zebras would be nice.
    I will certainly be on the lookout for excessive color noise when shooting the R5 but so far, I am very impressed with the IQ of the camera. Now, my trusty 1DX2 is gathering dust.

    • Arthur Morris/BIRDS AS ART

      Hi Doug, Zebras are far more accurate than the in-viewfinder histogram. And as I heard a famous bird photographer say here recently, “Yes, a horse and buggy will get you there but a Mercedes is much better.” The lack of Zebra technology with the R5/R6 bodies is a step backwards for me.

      with love, a

  • Arthur Morris/BIRDS AS ART

    Geoff and Joel,

    Thanks, Guys. I knew that I should stick to the artistic side of things …) Let’s say that I am 100% wrong. How do you explain the color noise in the vulture image? I had not seen color noise that bad in about 15 years …

    with love, artie

    • Adam

      I rarely if ever study/use/understand the scientific/theoretical charts and theories relating to photography. Folks often send links to such material. For one, I have never looked at an MTF chart. May great preference is to head into the field with a given camera or lens, create images of birds, and evaluate the results.

      Agree 100% and that’s why it’s more important to use practical observations to drive the questions. As you and others have encountered, the R5 seems less forgiving with respect to shadow noise than the A9 (and possibly the a7riv). Looking at charts doesn’t provide an absolute explanation but may provide some validation. What I’ve experienced is that the R5 images seem to display more low frequency color noise (blob like) than the Sony sensors and it muddies up the images. The a7riv due to its high pixel density demonstrates a fair amount of noise when viewed at 100% but it is of higher frequency and is easily controlled in PP. The mechanics of how it originates whether it is as the result of the amplification, RAW encoding, internal NR, RAW file decoding i.e. “profiles” etc. is less important than the real world observation. If it has something to do with the “profiles”, then it would be easy to modify. Ultimately, it would be helpful to compare a9ii RAW files (and maybe a7riv images) side by side against R5 images looking at the shadows of the same scene with different levels of underexposure. Perhaps one of the blog readers can do that?

    • Joel Eade

      One possible explanation is cropping, it doesn’t increase the noise in an image but it makes it more noticeable. Did you notice the noise more after the crop?

      • Arthur Morris/BIRDS AS ART

        Joel, The color noise in the un-cropped TIF file was horrific. In fact, the screen capture was from the full sized TIF file.

        with love, artie

  • So, the vulture picture was not cropped but full frame?

  • Geoff

    I don’t believe you’re interpreting that graph correctly. That graph should mainly be used to look at how flat the line is. The lines that stay flat at the bottom of the graph (say Nikon D7200) show that the camera is ISO invariant. So exposing correctly isn’t as important.

    There is a footnote below that graph that says it can’t be used to compare camera bodies.

    Actually the D5/D6 are the worst performers in that regard because they are continually stepping up and up as ISO climbs meaning that setting the correct ISO in camera is critical to maximize DR and noise.

    I don’t understand all the technical details of that graph but I do know you can’t use it to compare cameras.

    • Geoff

      Edit: Actually I don’t see the disclaimer anymore. I’m fairly certain there used to be a disclaimer about not using that graph to compare cameras.

      Still, my point about interpretation still holds.

    • Joel Eade

      I think you are correct …. the point at which the curve for any given camera begins to flatten tells you at that point higher ISO values will not gain anything over adjusting the shadows in post processing. So that is the point where the camera becomes “iso invariant”?

      The D5 then has more stops of dynamic range between the highlights and shadows than the other cameras until about iso 3200 where beyond that there is no further improvement?

    • Adam

      Hi Geoff, admittedly, the interpretation is complex though the slope of the curve tells one a fair amount about underlying characteristics of the sensor, i.e. whether increasing the ISO (applying gain) affords any benefit in recouping signal in the shadow regions. “PDR curve data can be interpreted differently to produce an objective measure of shadow improvement versus ISO. This allows the photographer to decide how much shadow improvement they are willing to trade-off against raising ISO.” The shape of the curve is equally important and as you have observed, when the slope approaches zero, raising the ISO provides no significant benefit in reclaiming shadow DR.

      While the discussion of proper exposure is beyond the limitations of a comment section, assuming we accept the notion that RAW capture is linear, then 1/2 of the possible tonal values are captured in the first stop (brightest areas), followed by 1/2 of the remainder for the second stop, and so on until one is left with few tonal values dedicated for the shadow regions. In other words, shadows have little tonal value and the SNR in these regions is compressed. At a given ISO say 1600, both the a9ii and R5’s DR fall but comparatively less so in the shadow regions in the a9ii. The graphs are manifestations of the physics, characteristics of the sensors, and amplifiers. Sony appears to have an edge in this respect and this is what I’ve observed in the field. If I underexpose a Sony image by 1/2 stop or so, the shadow noise is manageable whereas with the Canon it manifests very quickly. The live histogram is not very useful and it doesn’t indicate clipping either at any end. Zebras would be eminently useful.

  • Joel Eade

    Interesting data. Although they diverge a little above ISO 800 all the cameras in this chart (except the D5) are almost within 1 stop of one another in terms of dynamic range shadow recovery all the way up to ISO 12,800.

    I have generally taken your approach …. go out and take images to see how any given piece of gear performs rather than solely relying on lab tests and data charts. So far it seems to me that the R5 does quite well up to ISO 6400 if you expose properly to the right. Even without zebras the live histogram is helpful in this regard.

    Maybe they can add the zebras with a firmware update?
